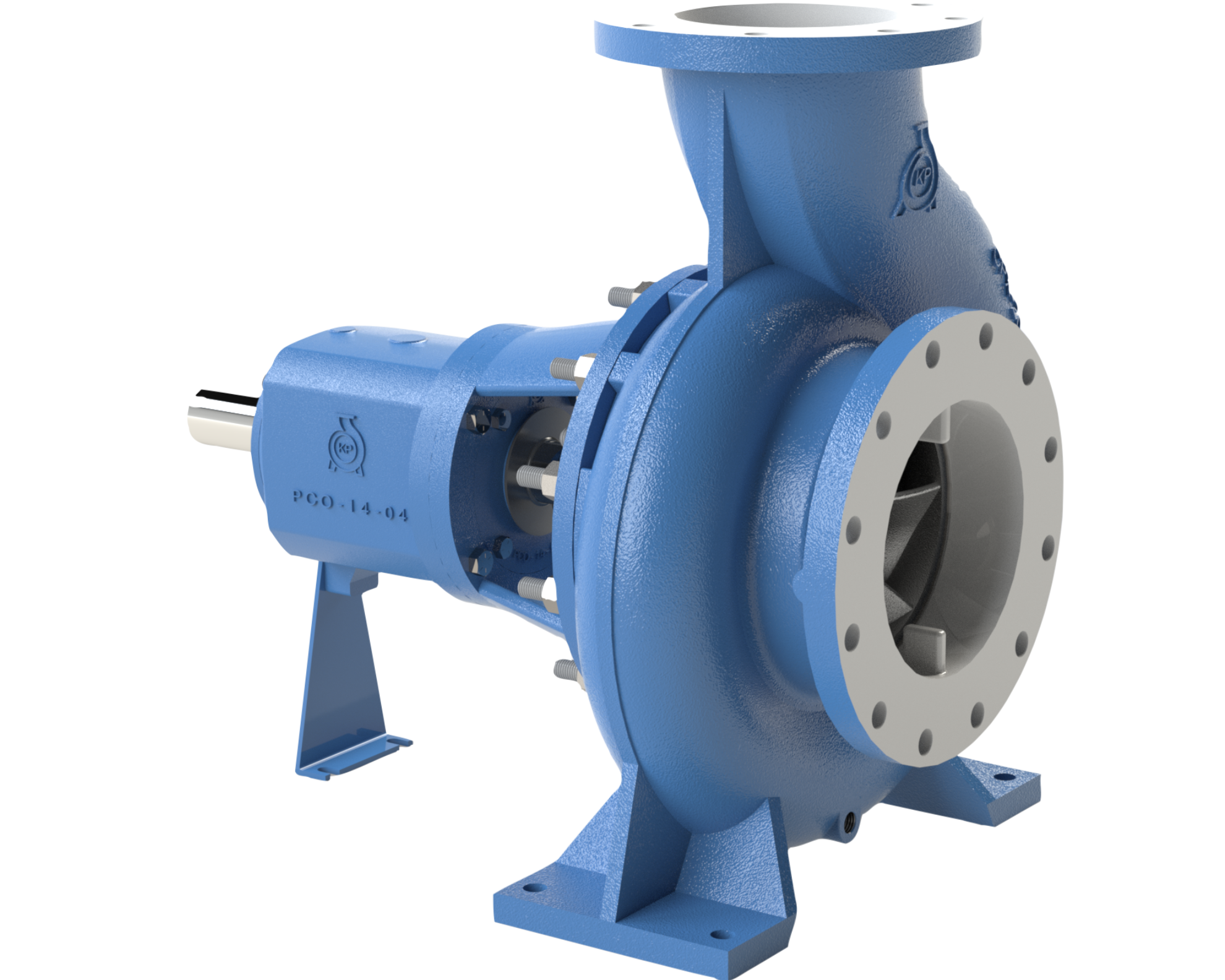

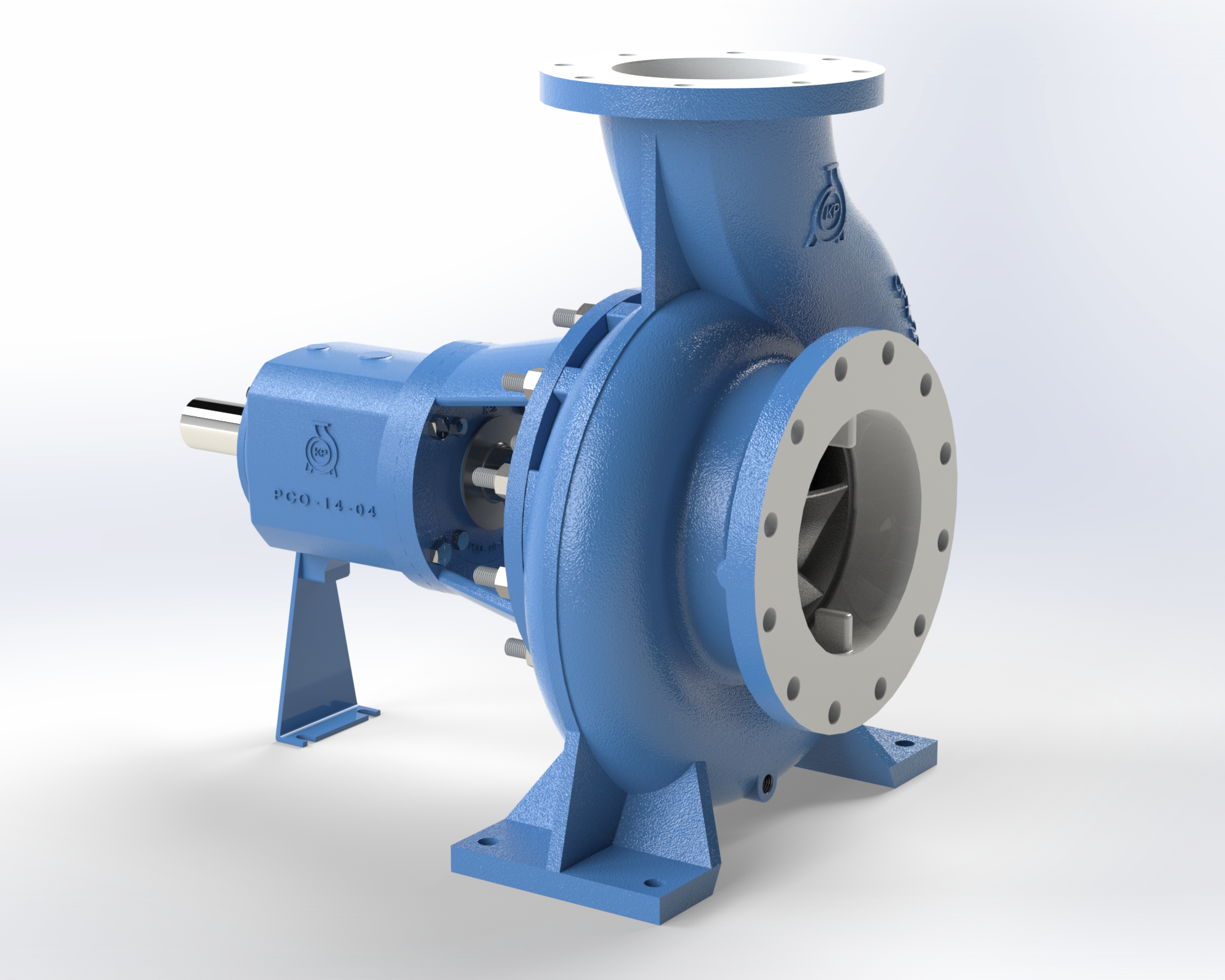

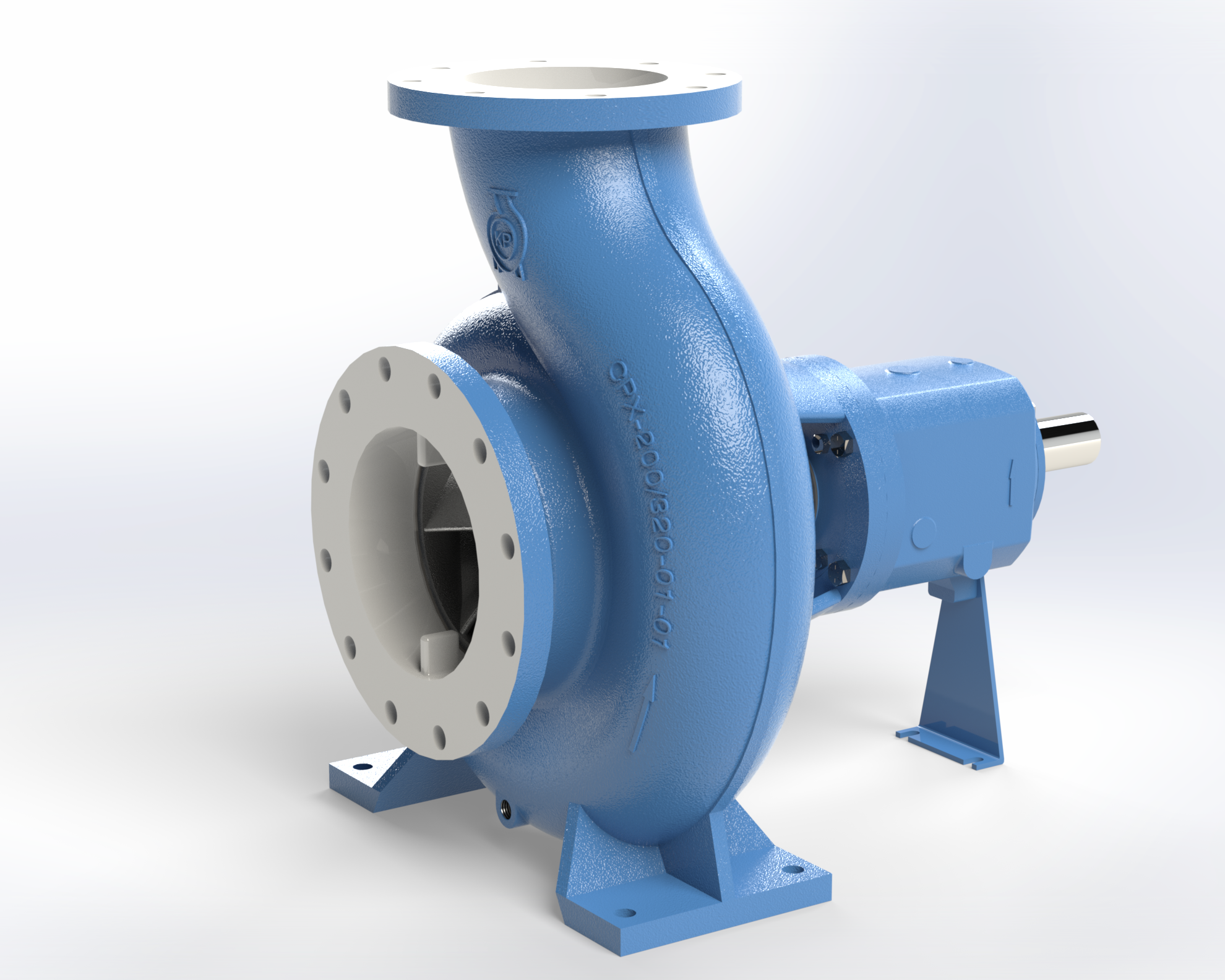

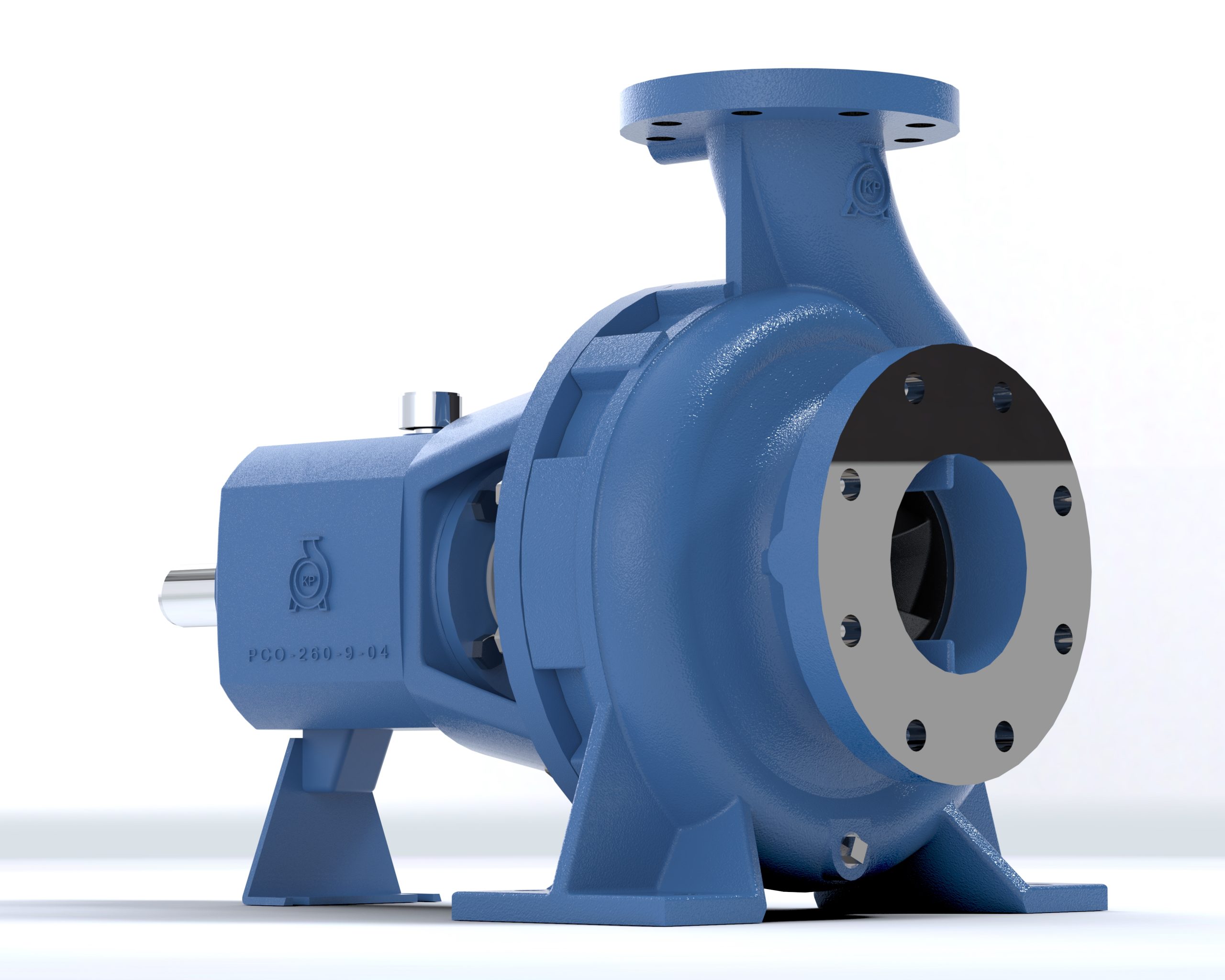

KCP SERIES

KEERTHI Pump has been producing robust, high-efficiency pumps for the Industrial market for two decades and our innovative pumps have provided unmatched value. KEERTHI Pumps – KCP Chemical process pumps series, is specially designed for all pumping Chemical liquid, clear water, solids handling, and grit/slurry pumps provide the reliability and inter-changeability demanded in industrial applications. KEERTHI Pumps offers a wide range of Chemical Process pump models and configurations to fit into existing installations.

Pump Delivery Size D DN 32 to DN 200
Head H Up to 140 mtrs (460feet)
Capacity Q Up to 900 m³/hr
Max.Working Pressure 22 bar
Max.Operating (Temp) 500°C

Chemical Process Industries

General Refinery Services, Oil Extraction and Waste

Pulp and Paper

Erosive/Corrosive Liquors & Volatile Liquids

hydrocarbon, oil, thermic fluids, Chemical & Process Transfer

Demineralised Water, Cooling Tower, Hot Water

clarified water, back water, white water, soft water & Condensates

Fertilizer Plants

Effluent Treatment Plants

Textile, Jet Dyeing, Dyes & Intermediates

Organic and Inorganic Liquids Refineries

Sugar Plants, cement, power and steel

Bulk Drugs and Pharmaceutical

Heating and Air Conditioning Plants

General Water Supply & Agriculture

Fire Fighting

Specifications Range
Pump Delivery Size D DN 32 to DN 200
Head H Upto 140mtrs (460 feet)
Capacity Q Up to 900 m³/hr
Speed N 960/1450/2900 rpm at 50 Hz
Speed N1150/1750/3500 rpm at 60 Hz
Max.Operating (Temp) 500°C

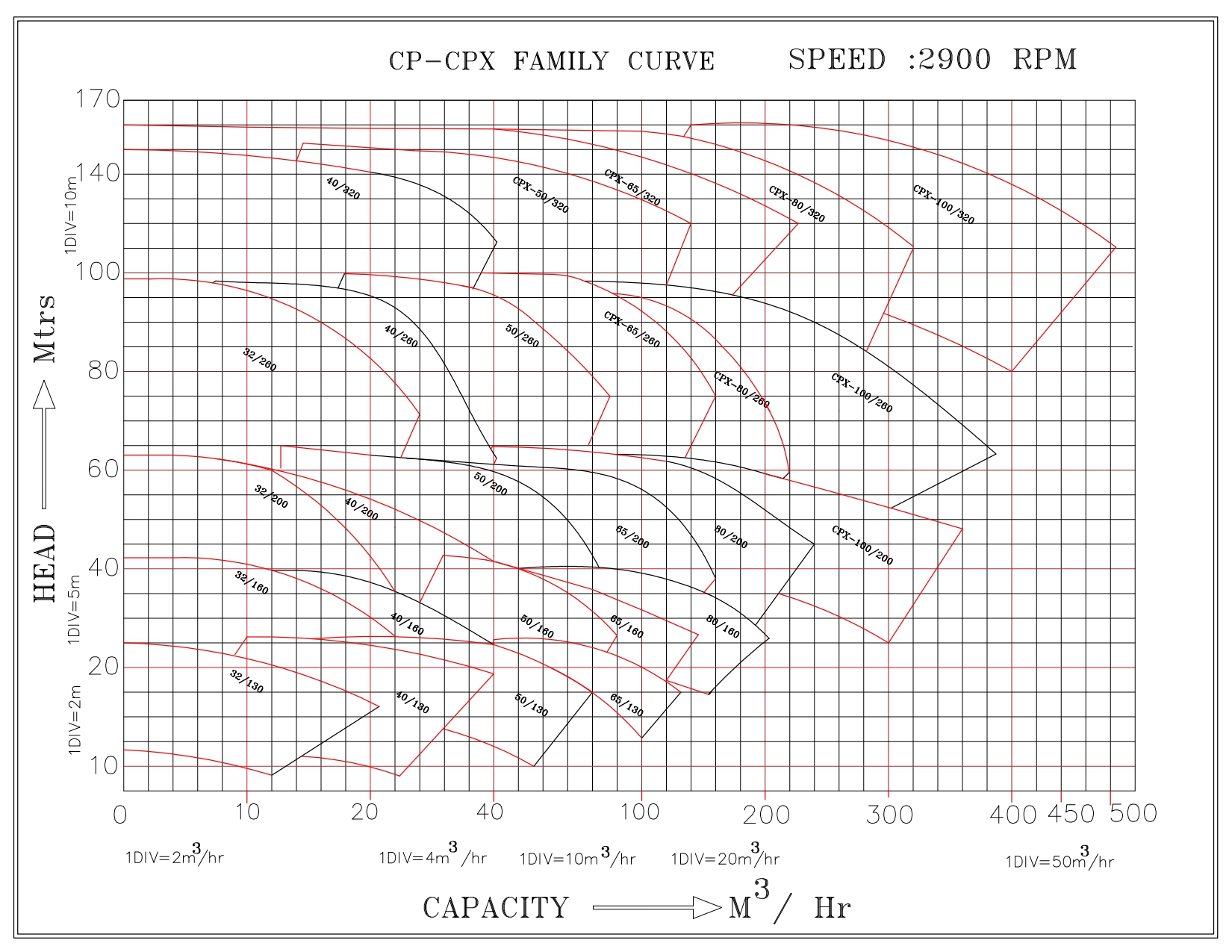

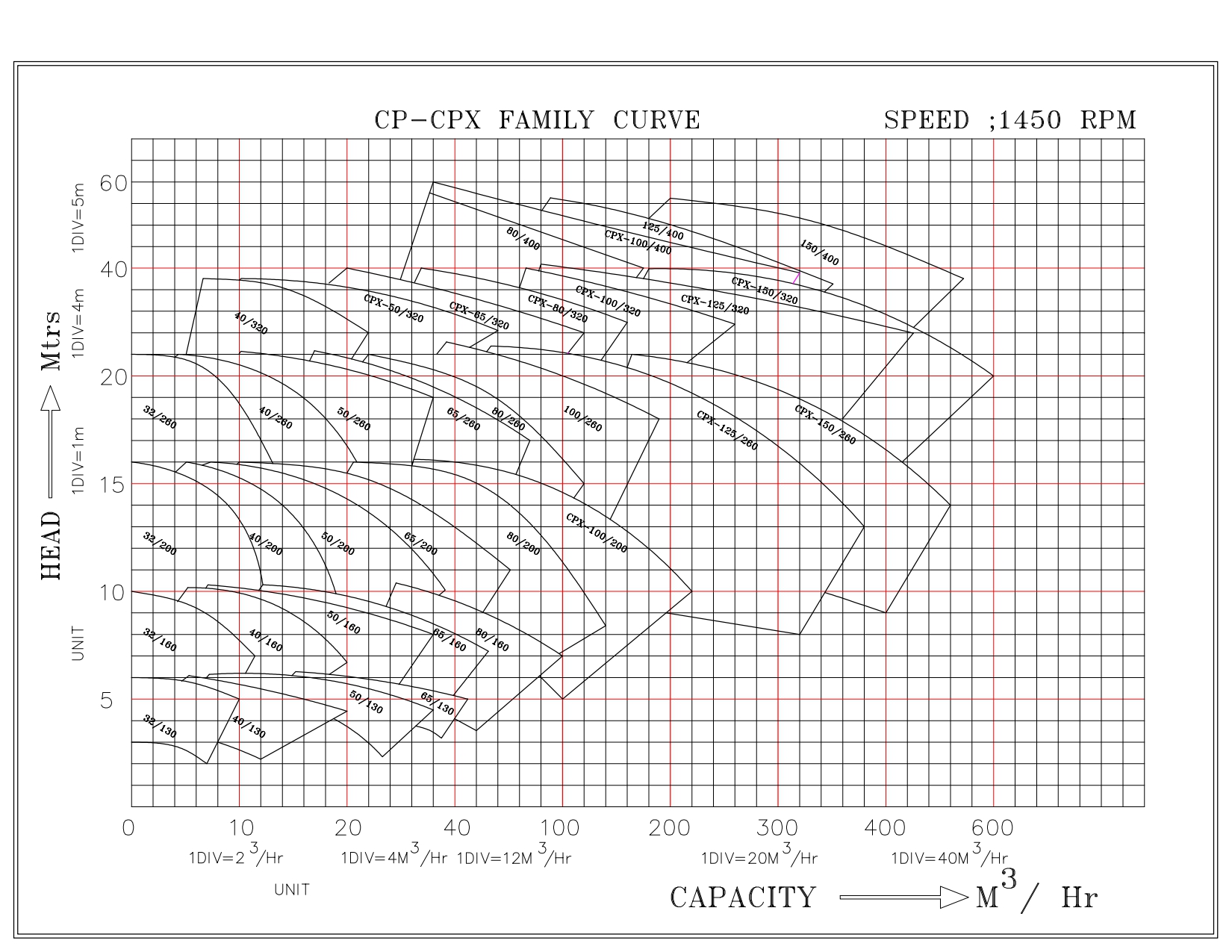

CP 32/130

CP 32/160

CP 32/200

CP 32/260

CP 40/130

CP 40/160

CP 40/200

CP 40/260

CP 40/320

CP 50/130

CP 50/160

CP 50/200

CP 50/260

CPX 50/320

CP 65/130

CP 65/160

CP 65/200

CP 65/260

CPX 65/320

CP 80/160

CP 80/200

CPX 80/260

CPX 80/320

CP 80/400

CP 100/200

CPX 100/260

CPX 100/320

CP 100/400

CPX 125/260

CPX 125/320

CP 125/400

CPX 150/260

CPX 150/320

CP 150/400

Easy maintenance through the Back-Pull-Out principle

Conform to iso 2858 dimensions

High efficiency hydraulic design for better power saving

Heavy duty shaft, sleeve and bearings ensures better life

One roller bearing on pump end, two angular contact ball bearing with oil lubricated

Low NPSH and lesser Noise and maintenance free

Single and double cartridge seals with seal support system

Robust shaft design

Designed for maximum wear life, minimum downtime, and reduced life time costs

Suitable with V-belt drive or direct coupled with a motor

Easy maintenance through the Back-Pull-Out principle

Single unbalanced / balanced seals to EN 12756 (DIN 24960)

Single and double cartridge seals with seal support system

Robust shaft design and Extended life time

Grease or oil bath lubricated bearings

Designed for maximum wear life, minimum downtime, and reduced life time costs.

2-Deepgroove ball bearings or double row bearing

Part NameMaterial
CasingCast iron FG260 / Cast Iron FG 200 / CF8 / CF8M / 2%NICI / Duplex Steel
ImpellerSS 304 / SS 316/Duplex Steel
Stuffing BoxCast iron FG260 / Cast Iron FG 200 / CF8 / CF8M / 2%NICI / Duplex Steel
wear ringSS 304 / SS 316/Duplex Steel
Pump ShaftEN8 /SS 410 / SS 304 / SS 316/Duplex Steel
Shaft SleeveSS 410 /SS 304 / SS 316/Duplex Steel
Bearing bedCast iron
GlandMS / SS

Gland Rope

Single Mechanical seal

Double Mechanical seal

Cartridge Seal

Dynamic Seal

Base plate

Coupling (Love jaw/tyre/spacer/pin push)

Coupling guard

Foundation Bolt
