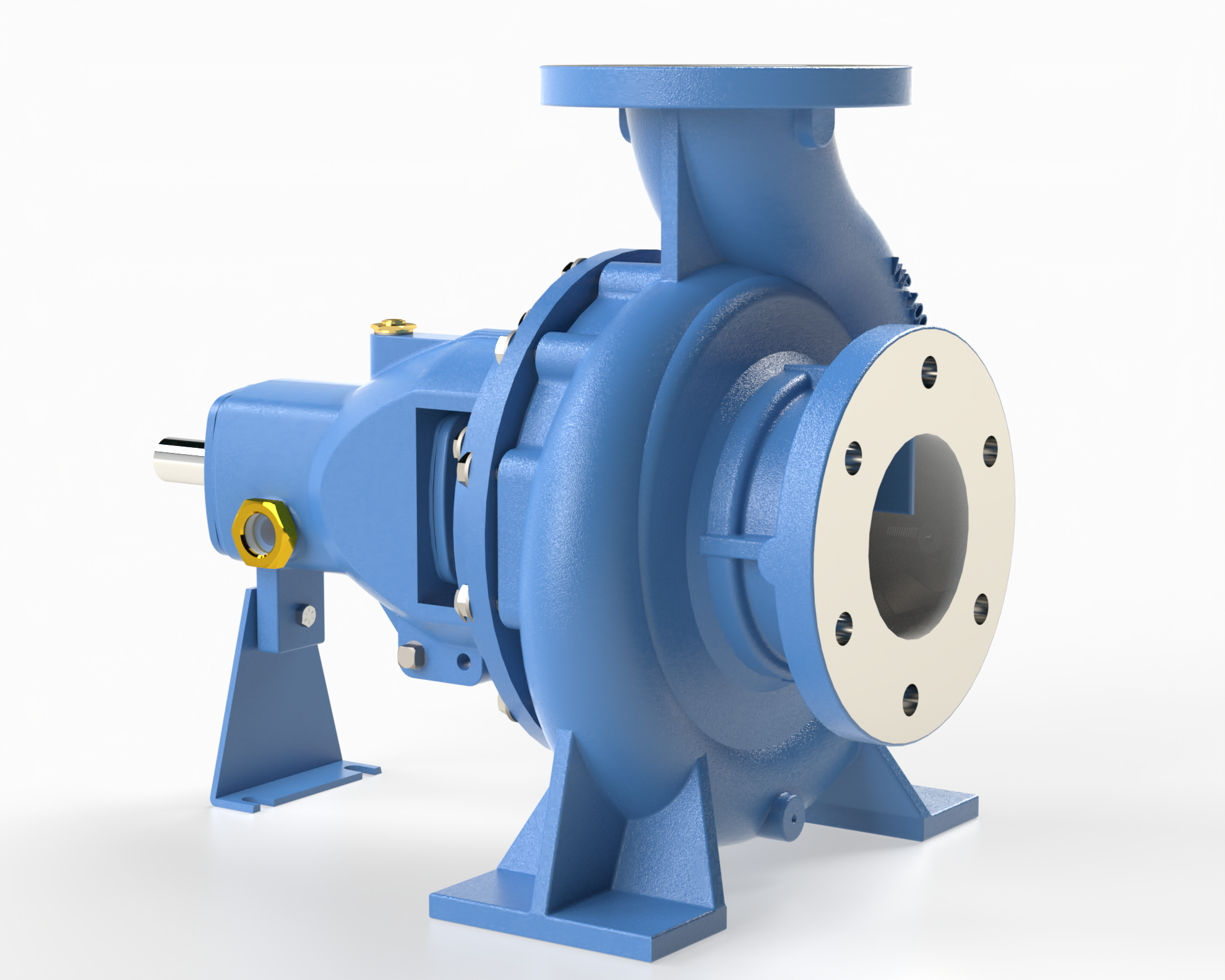

WP new 6

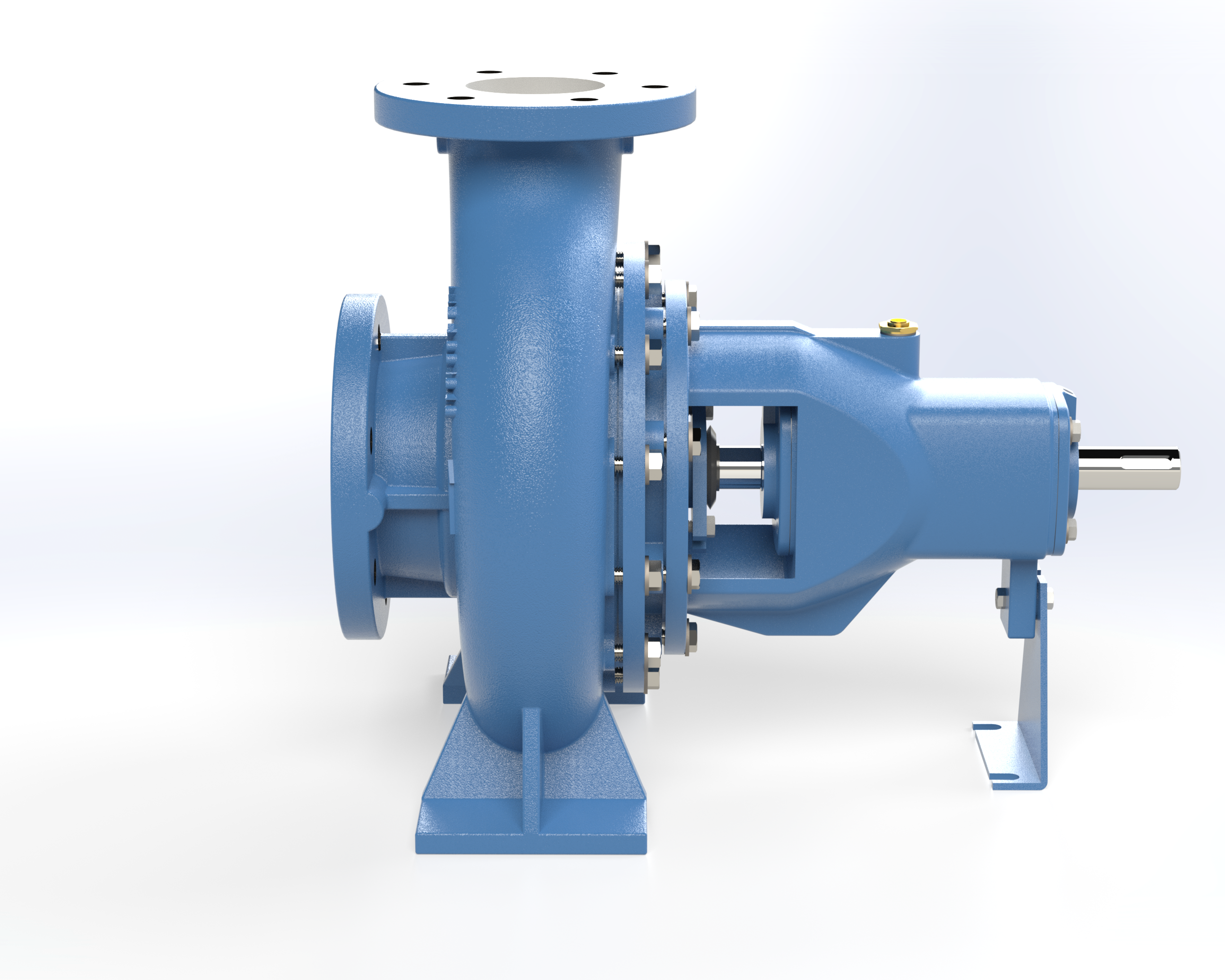

WP new

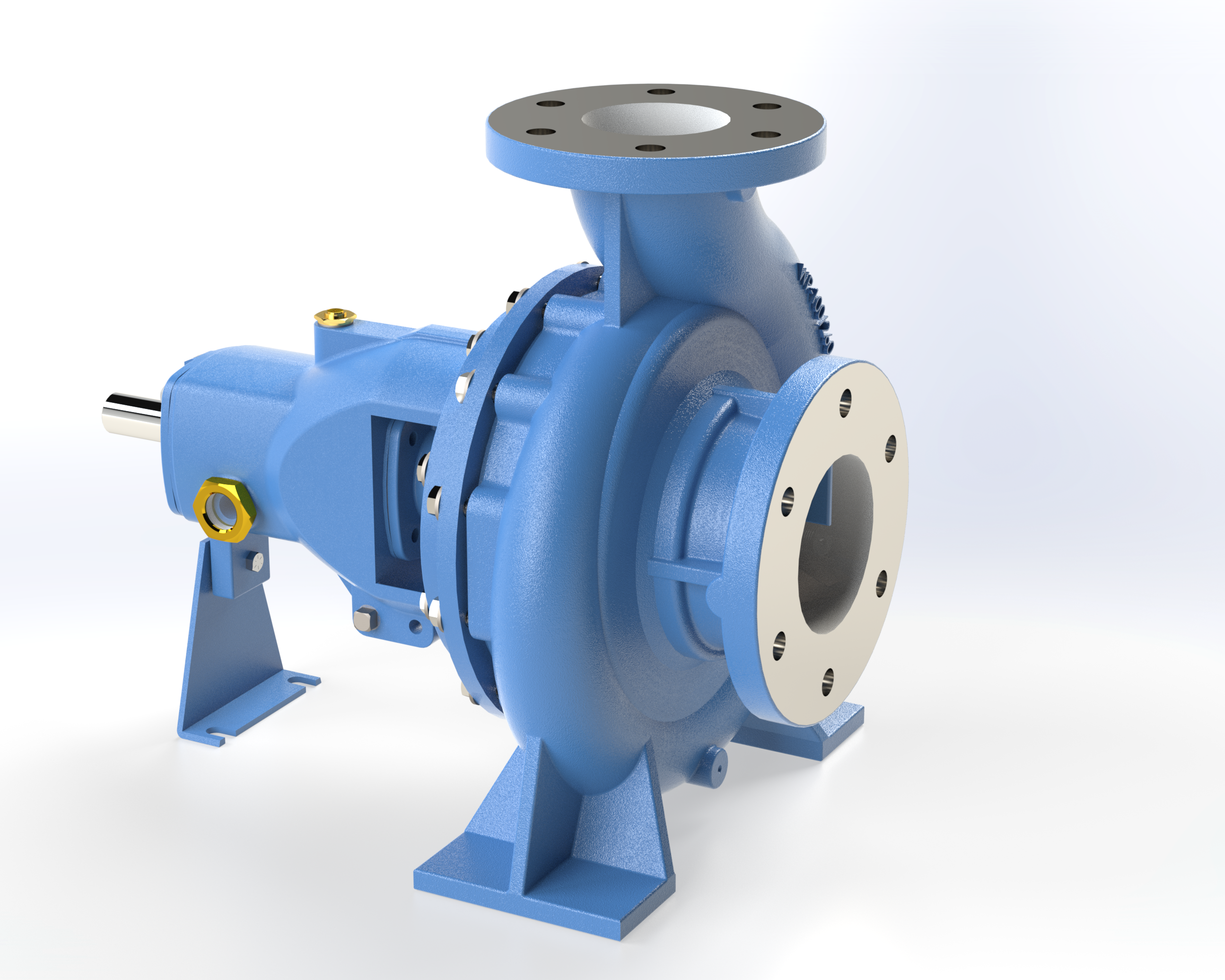

WP new_2

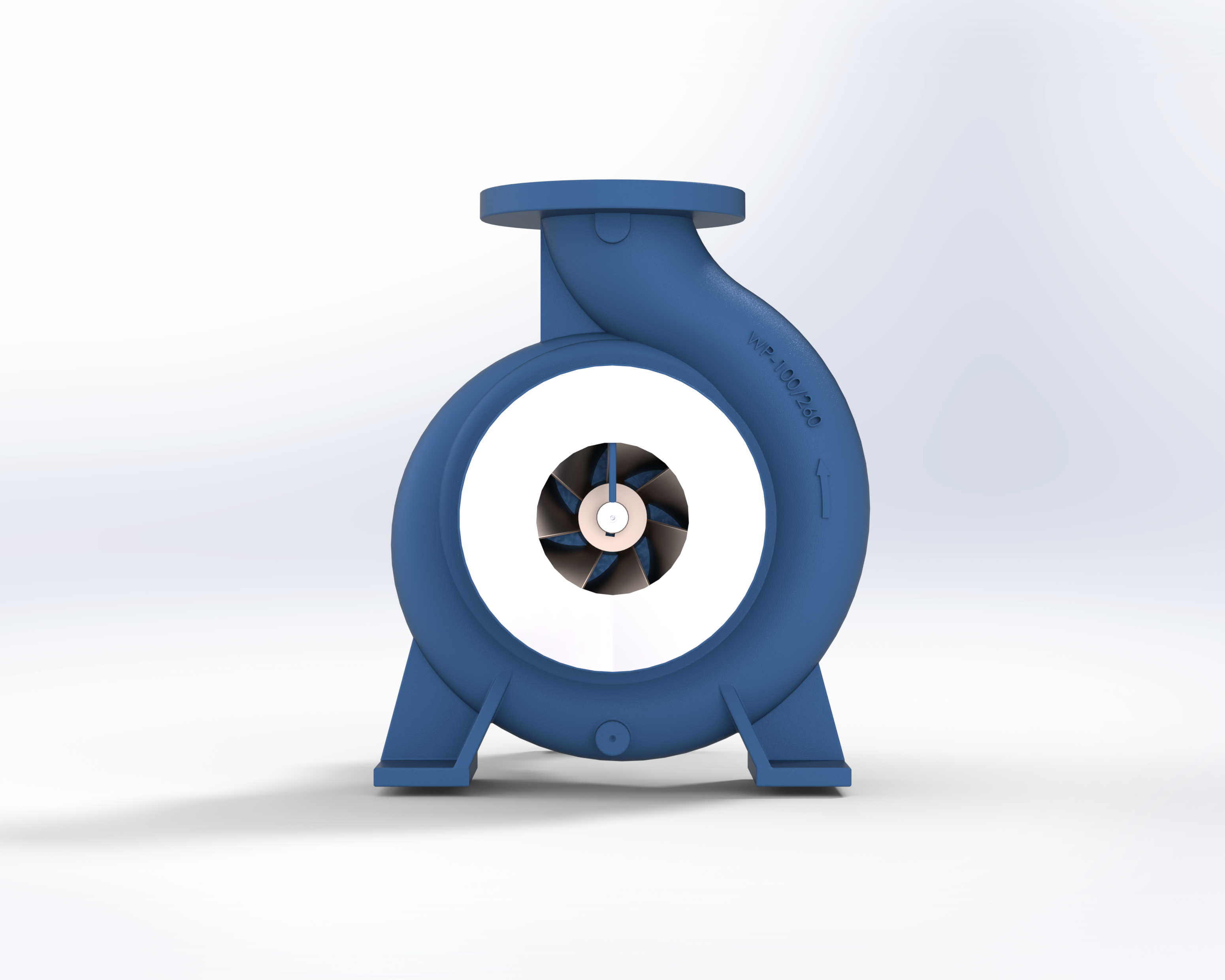

WP_front
previous arrowprevious arrow
next arrownext arrow

WP SERIES

KEERTHI Pumps is renowned for manufacturing the highest quality Industrial pumping and utilizing the best engineering practices available worldwide. WP series is the single stage end suction pump has been designed with latest CAD (Computer Aided Design) and CFD (Computational Fluid Dynamics) for better energy efficient.

Pump Delivery Size D DN 32 to DN 150
Head H Up to 100 mtrs (328feet)
Capacity Q Up to 550 m³/hr
Max.Working Pressure 16 bar
Max.Operating (Temp) Up to 100°C
Speed N 2900/1450 rpm

General water supply & Industrial water supply

Agriculture and Irrigation

Water treatment plants

Paper & pulp industries

Power plants

De-salination

HVAC & Firefighting system

Sprinkler systems

Sea water desalination plants

Cooling Tower

Cement and Process industries

Food Processing & Textile

Specifications Range
Pump Delivery Size D DN 32 to DN 150
Head H Up to 100 mtrs (328feet)
Capacity Q Up to 550 m³/hr
Speed N960/1450/2900 rpm at 50 Hz
Speed N 1200/1800/3600 rpm at 60 Hz
TemperatureUp to 100°C

WPX 32/130

WPX 32/160

WPX 32/200

WPX 32/260

WPX 40/130

WPX 40/160

WPX 40/200

WPX 40/260

WPX 40/320

WPX 50/130

WPX 50/160

WPX 50/200

WPX 50/260

WPX 50/320

WPX 65/130

WPX 65/160

WPX 65/200

WPX 65/260

WPX 65/320

WPX 80/160

WPX 80/200

WPX 80/260

WPX 80/320

WPX 80/400

WPX 100/200

WPX 100/260

WPX 100/320

WPX 100/400

WPX 125/260

WPX 125/320

WPX 125/400

WPX 150/260

WPX 150/320

WPX 150/400

Back pull-out design for Service user friendly

Conform to ISO 2858 dimensions

High efficiency hydraulic design

Heavy duty shaft, sleeve and bearings

Low NPSH and Low Noise and maintenance free

Dynamically Balanced Impellers

Spares Interchangeability

Various Sealing Options; Gland Packing, Mechanical Seal, Expellers

Wide Choice of material

Top centreline discharge and tapered bore seal changers ensures self-venting

One roller bearing on pump end, two angular contact ball bearing with oil lubricated

Suitable with V-belt drive or direct coupled with a motor

Easy maintenance and Repair through the Back-Pull-Out principle

High efficient and Energy Saving

Single unbalanced / balanced seals to EN 12756 (DIN 24960)

Single seals with seal support system

Quenched shaft sealing and more durable

Grease or oil bath lubricated bearings

Interchangeability of Spares ensures less inventory

Robust construction leads more life

Centreline discharge

Shielded bearings eliminate need for adding or exchanging lubrication oil

Robust shaft design ensures Extended life time

Part Name Material
Casing Cast iron FG260/ Cast Iron FG 200/CF8/CF8M/2%NICI/Duplex Steel
Impeller Cast iron FG260/ Cast Iron FG 200/Bronze/CF8/CF8M/2%NICI/Duplex Steel
Stuffing Box Cast iron FG260/ Cast Iron FG 200/CF8/CF8M/2%NICI/Duplex Steel
wear ring Cast iron FG260/ Cast Iron FG 200/Bronze/CF8/CF8M/2%NICI/Duplex Steel
Pump Shaft EN8 / SS 410/SS 304/SS 316/Duplex steel
Shaft Sleeve SS 410/SS 304/SS 316/Duplex steel
Bearing bed Cast iron

Base Plate

Motor & Pump Couplings (Love Jaw, Tyre, Pin Bush, Spacer)

Coupling  guard

Foundation Bolt

Gland Rope

Single Mechanical seal

Double Mechanical seal

Cartridge Seal

Dynamic Seal
